NMES Units > BioStim NMS 2

BioStim M7

BioStim M7 accessories

BioStim NMS pdf

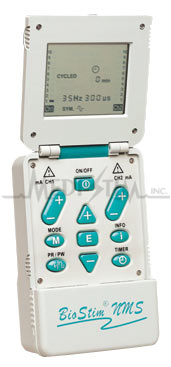

BioStim NMS

No longer available. Please See BioStim NMS 2

Features

  • Dual channel (4-lead) all digital muscle stim
  • Three treatment modes (Cycled, Reciprocating, Constant)
  • Choice of waveform (symmetrical or asymmetrical biphasic square wave)
  • 5 popular preset programs (3 for incontinence)
  • Fully adjustable rate, width, ramp, contraction and relaxation times
  • Last setting recall & settings lock
  • Large LCD display showing all parameters
  • Compliance monitor
  • Treatment timer
  • Removable plastic belt clip
  • 5-year warranty
  • Comes with 1 pkg of 4 reusable self-adhering electrodes, 1 set 48” pin lead wires, 4 each AA alkaline batteries, carrying case, and instruction manual
  • Leadwire reorder #LWULTBML or #L00013

Technical Specifications

  • Channel: Dual
  • Amplitude: Continuously adjustable from 0 - 120 mA peak
  • Output Voltage: 0 - 60V peak to peak
  • Waveform: Symmetrical biphasic square, asymmetrical biphasic square
  • Pulse Rate: Adjustable 1 - 120 Hz
  • Pulse Width: Adjustable 50 - 400 µS
  • Modes: Constant, Cycled, Reciprocating
  • Contraction Time: 0 - 99 seconds
  • Relaxation Time: 0 - 99 seconds
  • Ramp: Up/Down 0 - 10 seconds
  • Power Supply: 4 AA batteries, type LR6
  • Size: 9.9 x 6.5 x 3.3 cm
  • Weight: 226 grams
Controls & Indicators

BioStim NMS Controls & Indicators
