NMES Units > COMPSTIM

N607 EMS

N607 EMS with accessories

COMPSTIM pdf

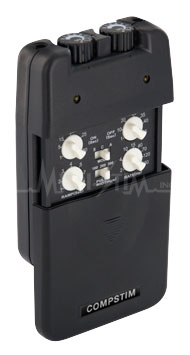

COMPSTIM

Features

  • Dual channel (4-lead) analog muscle stim
  • 3 Treatment Modes (Alternating, Synchronous, or Constant)
  • Adjustable frequency
  • Adjustable contraction and relaxation times
  • Adjustable ramp times
  • 3 selectable pulse width settings (100, 200, or 300 µS)
  • Channel output indicator LED lights
  • Locking front control panel
  • Removable plastic belt clip
  • 1-year warranty
  • Comes with 1 pkg of 4 reusable self-adhering electrodes, 1 set 43” pin lead wires, 1 each 9V heavy duty battery, carrying case, and instruction manual
  • Leadwire reorder # LW46SPLE

Technical Specifications

  • Channel:Dual, isolated between channels
  • Amplitude: Adjustable, 0 - 80 mA, Max output 80 mA peak into 500 ohm load each channel
  • Voltage: Adjustable, 0 - 45 V, Max output 45 V peak into 500 ohm load each channel
  • Waveform: Asymmetrical biphasic square pulse
  • Pulse Rate:Adjustable, 2 ~ 150 H
  • Pulse Width: Selectable, 100, 200, 300 µS
  • Power Supply: One 9-volt battery
  • Contraction Time: Adjustable, 1 ~ 30 seconds
  • Relaxation Time: Adjustable, 1 ~ 45 seconds
  • Ramp Time:Adjustable, 1-8 sec
  • Size: 9.5 x 6.5 x 2.35 cm
  • Weight: 115 grams including battery
