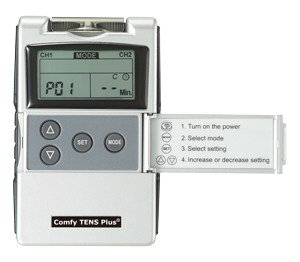

TENS units > Comfy TENS Plus

Quote Me!

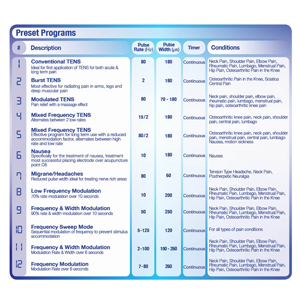

Comfy TENS Plus Presets
Click to enlarge



Features

  • Dual channel (4-lead) digital TENS
  • 12 Preset Programs
  • 5 Treatment Modes (Normal, Burst, Modulated Rate & Width, SD1, SD2)
  • High-tech design with metallic finish and LCD display
  • Stronger 100 mA amplitude
  • Treatment timer (1-60 minutes or Continuous)
  • Last setting recall
  • Compliance monitor
  • Low Battery power indicator
  • Hinged protective cap for intensity dials
  • Heavy duty metal belt clip
  • 3 Year warranty
  • Comes with 1 pkg of 4 reusable self-adhering electrodes, 1 set 43” pin lead wires, 1 each 9V heavy duty battery, carrying case, and instruction manual
Leadwire Reorder: LW46SPLE

Technical Specifications

  • Channels: Dual, isolated between channels
  • Waveform: Asymmetrical Biphasic Square Pulse
  • Amplitude: 0-100 mA (peak to peak into 500 ohm load each channel)
  • Output Voltage: 0 to 50V (500 ohm load)
  • 12 Preset Programs
  • Modes: 5 TENS Modes: B (Burst), N (Normal), M (50% Modulated Rate & Width), S1 (40% Modulated Intensity & Width), S2 (70% Modulated Intensity & Width)
  • Pulse Rate (Frequency): 2 - 150 Hz, 1 Hz/step
  • Pulse Width (Duration): 50 - 300 microseconds (μs), 10 μs/step
  • Treatment Timer: 1 - 60 minutes or Continuous (C)
  • Compliance Usage Meter: Records up to 60 sessions, up to 999 hours
  • Low Battery Indicator: Battery symbol appears when battery power is low
  • Power Supply: One 9 Volt Battery
  • Size: 4” (L) x 2.4” (W) x 1” (D)
  • Weight: 5.2 oz. with battery
