TENS Units > BioStim M7
BioStim M7

BioStim M7 accessories

BioStim M7 pdf

BioStim M7 TENS Unit

Features

  • Dual channel (4-lead) all digital TENS
  • Seven treatment modes (Normal, Burst 1, Modulated Rate, Modulated Width, Modulated Rate & Width, SD1, SD2)
  • Flip-top panel design
  • Last setting recall & setting lock
  • Compliance monitor
  • Removable plastic belt clip
  • Power ON/OFF button
  • Treatment timer
  • 5-year warranty
  • Comes with 1 pkg of 4 reusable self-adhering electrodes, 1 set 48” pin lead wires, 2 each AA alkaline batteries, zippered case pouch, and instruction manual
  • Leadwire reorder #LWULTBML or #L00013

Technical Specifications

  • Channel: Dual
  • Amplitude: Adjustable, 0 - 98 mA peak to peak
  • Output Voltage: Adjustable, 0 - 49 V peak to peak
  • Waveform: Asymmetrical biphasic square
  • Pulse Rate: Adjustable, 1 - 200 Hz
  • Pulse Width: Adjustable,10 - 250 µS
  • Modes: Continuous, Burst, Modulated Rate, Modulated Width, Modulated Rate & Width, Strength Duration 1, Strength Duration 2
    Continuous - Continuous stimulation
    Cycled - Burst 2.5 seconds on, 2.5 seconds off. Adjustable pulse rate 1 - 200 Hz. Adjustable pulse width from 10 - 250 µS
    Modulated Rate - Decrease / increase of set rate 50% over 6 seconds
    Modulated Width - Decrease / increase of set width 50% over 6 seconds
    Pulse Width & Rate Modulation - Pulse rate and pulse width alternately decrease and increase 50% of their set values over 6 seconds
    Strength Duration 1 - Increase of set pulse width 40%, decrease of set pulse rate 45% and decrease of amplitude 10% over a 3 second period. Values return to original settings over the next 3 second period
    Strength Duration 2 - Increase of set pulse width 60%, decrease of set pulse rate 90% and decrease of amplitude 13% over a 6 second period. Values return to original settings over the next 6 second period
  • Power Supply: 2 AA batteries
  • Size: 10 x 6.5 x 1.7 cm
  • Weight: 92 grams

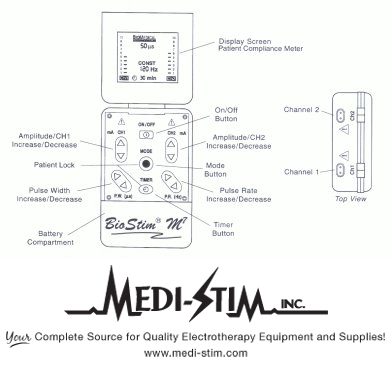

Controls & Indicators

Bio Stim M7 controls & indicators
